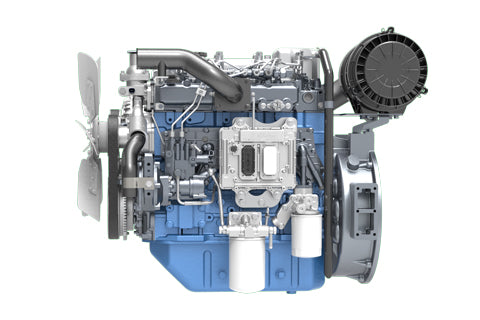

Open-type Diesel Engine
Key attributes
| Item | Specification |
|---|---|
| Maximum Power | 96 kWm |
| Minimum Power | 60 kWm |
| Max. Torque Speed | / N·m / r/min |
| Emission Standard | China Non-road Stage III |
| Product Series | WP4.1 |
| Fuel | Diesel |
| Engine Type | In-line 4-cylinder, four-stroke engine |
| Number of Cylinders | 4 |
| Number of Valves | 2 |
| Bore | 105 mm |
| Stroke | 118 mm |
| Displacement | 4.088 L |
| Intake System | Turbocharged & Intercooled |
| Compression Ratio | 17.5:1 |
| Combustion System | Electronic Controlled High-pressure Common Rail |
| Overall Dimension - Length | 892 mm |
| Overall Dimension - Width | 683 mm |
| Overall Dimension - Height | 873 mm |
| Gross Weight | 400 kg |
